Display Filters (KFL)

Kubeshark Filter Language (KFL) is a display filter language powered by Common Expression Language (CEL). It filters network traffic according to specific rules — instead of searching for the needle in the haystack, it filters out the haystack to reveal the needle.

For example, to only see HTTP responses with client error status codes (400–499):

http && status_code >= 400 && status_code < 500

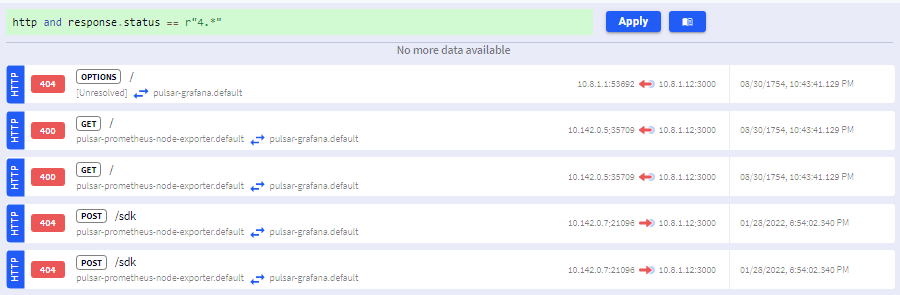

Click the Apply button to filter the traffic stream:

Filter example

KFL vs. Capture Filters

KFL should not be confused with Capture Filters as they serve different purposes:

Aspect	Display Filters (KFL)	Capture Filters
Purpose	Filter what is displayed	Filter what is captured
Impact	Dashboard view only	Resource consumption
Scope	Single browser tab	Cluster-wide
Syntax	CEL expressions	Helm values / Dashboard

For those familiar with Wireshark, KFL is analogous to Wireshark’s Display Filters, and Capture Filters to Wireshark’s BPF (Berkeley Packet Filter) filters.

Queryable UI Elements

When you hover over UI elements and they display a green + sign, the element can be added to your query. Clicking appends the corresponding filter expression.

Queryable UI Elements Example

This makes it easy to build complex filters without typing the full expression.

Quick Examples

# HTTP server errors
http && status_code >= 500

# Traffic to a specific namespace
dst.pod.namespace == "production"

# DNS queries for a domain
dns && "example.com" in dns_questions

# Filter by pod labels (safe access)
map_get(local_labels, "app", "") == "payments"

# Slow requests (over 5 seconds)
http && elapsed_time > 5000000

# Recent traffic
timestamp > now() - duration("5m")

Full Reference

For the complete KFL syntax, all supported variables, and advanced examples, see the KFL Reference.
